Accessories

Accessory Cables
Below is a list of accessories that are used to connect sensor interface boards to PhotoniQ data acquisition systems. Because of differing customer requirements, sensor interface boards and the SDS232 do not include the 32 channel SIB cable that connects to the front panel of the PhotoniQ. This cable should be ordered separately in a length suitable for your application. All SIB and high voltage cables can be used with any Vertilon sensor interface board and any 32 or 64 channel PhotoniQ model.
Sensor Interface Board Cables
SIB cables for sensor interface boards are offered in two standard lengths and in custom lengths up to 180 cm. Generally, one cable is needed for every 32 channels in a system. Applications utilizing an IQSP480 or IQSP580 require one SIB cable while those utilizing an IQSP482 or IQSP582 require two. If an SDS232 is used in place of a sensor interface board, a standard 48 cm length cable is available.



SIB cables
  • SBC060 – Sensor interface board cable, 60 cm, panel mount
  • SBC090 – Sensor interface board cable, 90 cm, panel mount
  • Engineering Drawing: SBCxxx Sensor Interface Board Cables



High Voltage Cables
Each high voltage module installed in a PhotoniQ requires a high voltage cable to connect the HV output on the PhotoniQ front panel to the HV input on the sensor interface board. The connection to the PhotoniQ is made using an industry standard SHV high voltage plug. Alternatively for OEM applications, the “P” version of the cable is ordered. It uses a specialized low-profile connector to make a direct connection to the PhotoniQ printed circuit board. For all versions, the SIB’s high voltage connection is made with the same specialized connector. Each high voltage module ordered includes one 90 cm high voltage cable. Extra high voltage cables are available in a 90 cm standard length and in custom lengths up to 180 cm.

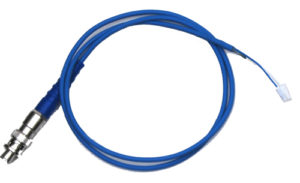

High Voltage Cable



Accessory Cables
These high quality accessory cables are used to connect trigger and preamp output signals from Vertilon sensor interface boards to a PhotoniQ data acquisition system or other laboratory instrument. The cables are also compatible with the SDS232 distribution system for single element sensors.



Accessory Cable
  • SMB120 – Coaxial cable, SMB plug to BNC plug – 120 cm
  • SMB120X8 – Coaxial cable, SMB plug to BNC plug – 120 cm, pack of 8



Interconnect Products
This accessory allows the outputs from two 16 channel sensor interface boards to be combined into one 32 channel SIB cable.

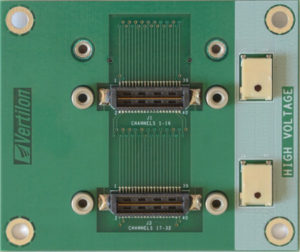

SIB1632
