Multichannel Preamplifier Systems
Vertilon currently offers two multichannel preamplifier systems for direct connection to multianode PMTs and silicon photomultiplier array. The SIB064-2152 MAPMT Preamplified Sensor Interface Board in combination with two AMP320 32 Channel Amplifiers, provides a high speed 64 channel system for direction connection to large MAPMTs. This system is ideal for timing applications and waveform digitization. The second offering is the PRP110, a ten channel high bandwidth preamplifier with large input and output dynamic range. Additionally, Vertilon can customize these systems for virtually any customer-specified configuration.
SIB064-2152 / AMP320 — 64 Channel High Speed MAPMT Preamplifier System
- 64 high speed preamplifier channels
- SIB064-2152 mounting PCB for Hamamatsu H14220A MAPMT
- 64 transimpedance preamplifiers
- Two AMP320 thirty-two channel amplifier boxes
- Separate timing amplifier chain for MAPMT last dynode output
- Simple power supply and connectivity
- Supports other large MAPMTs including Hamamatsu H12700, H10966, and H8500
Product Sheet: SIB064-2152 / AMP320 64 Channel Multianode Photomultiplier Amplifier System
User Guide: SIB064-2152 / AMP320 64 Channel Multianode Photomultiplier Amplifier System

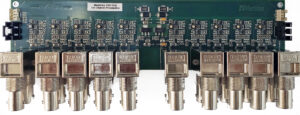

PRP110 — Ten Channel High Bandwidth Preamplifier System
- Ten high gain / bandwidth channels
- Large input and output dynamic range
- Direct connection to PMTs and silicon photomultipliers
- BNC inputs and outputs
- Two user selectable gain settings
- Small compact PCB form factor
- Jumper configurable input gain and polarity
Product Sheet: PRP110 Ten Channel High Gain High Bandwidth Preamplifier
User Guide: PRP110 Ten Channel High Gain High Bandwidth Preamplifier
